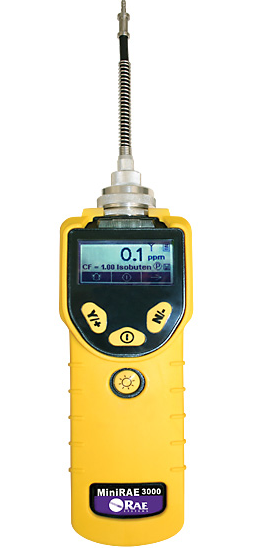

MiniRAE 3000 Advanced, Handheld VOC Gas Monitoring

The MiniRAE 3000 is the most advanced handheld volatile organic compound (VOC) detector on the market. Its Photoionization Detector's (PID) extended range of 0 to 15,000 ppm makes it an ideal instrument for applications from industrial hygiene, to leak and HazMat detection.

The RF modem allows real-time data transmissions with a base controller located up to 500 feet (or two-miles with optional RAELink3 portable modem) away from the MiniRAE 3000 detector. A personal computer can be used as the base station for a MiniRAE 3000 system. The standard ProRAE Remote software is capable of monitoring the input of up to 64 remotely-located monitors like MiniRAE 3000, or AreaRAE, etc.


  • Oil & Gas

  • Industrial Safety

  • Civil Defense

Key features

  • Proven PID technology - The patented sensor provides the following unique features:

         - A 3-second response time
         - Extended range up to 15,000 ppm with improved linearity
         - Humidity compensation with inbuilt humidity and temperature sensors

  • Real-time wireless data transmission with built-in RF modem or Bluetooth.

  • Design for service Easy access to lamp and sensor in seconds without tools.

  • Big Graphic display for easy overview of gas type, Correction Factor and concentration.

  • Field interchangeable battery pack in second's without tools.

  • Integrated Flash Light for better view in dark conditions

  • User friendly screens including plot view chart view

  • Inbuilt full RAE Systems 350 compounds correction factors list measure more chemicals than any other PID

  • Multilanguage support with 10 languages encoded

  • Rugged housing withstands use in harsh environmentsâ—¦IP67 Waterproof design for easy cleaning and decontamination in water

  • Strong protective removable Rubber Boot.


  • External filters

  • Calibration gases

  • Spare parts

  • Contact us for more options and accessories
