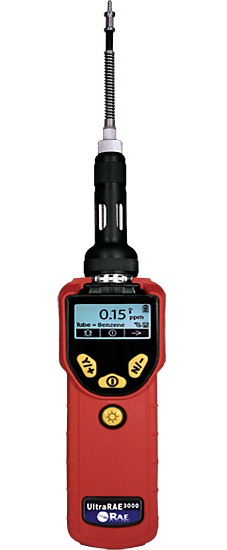

UltraRAE 3000 Portable Handheld Benzene and Compound-Specific VOC Monitor

The UltraRAE 3000 is the most advanced Compound-Specific Monitor on the market. Its Photoionization Detector's (PID) extended range of 0.05 to 10,000 ppm in VOC mode and 50 ppb to 200 ppm in benzene-specific mode makes it an ideal instrument for applications from entry pre-screening during refinery and plant maintenance to hazardous material response, marine spill response and refinery down-stream monitoring.


  • Confined space entry pre-screening during refinery and plant maintenance.

  • Hazardous material response.

  • Marine spill response.

  • Refinery down-stream monitoring.

Key features

  • Petrochemical

  • Proven PID technology

  • 3-second response in VOC mode or 60 seconds in compound-specific mode

         - Extended range up to 10,000 ppm (in VOC mode) with improved linearity
         - Humidity compensation with built-in humidity sensor
         - Automatic temperature-controlled sampling time calculation
         - Detects benzene down to 50 ppb (0.05 ppm)

  • Unique 15-minute benzene STEL calculation with 15-minute real-time benzene-specific measurement and recording

  • Highly specific readings, combining a 9.8eV UV lamp and RAE-Sep benzene tube

  • New sampling probe design provides instant tube-breakthrough visibility

  • Extremely Versatile

         - VOC mode or Benzene-Specific mode for extreme versatility
         - Real-time wireless data transmission with built-in Bluetooth
         - Measures more compounds than any other PID with
Integrated Correction Factors
         - Field-interchangeable battery pack is replaceable in seconds without tools

  • Easy to Use

         - Large graphic display
         - Multi-language support
         - Easy access to lamp and sensor in seconds without tools

  • Low Cost of Ownership

         - Inexpensive analysis using low-cost RAE-Sep tubes vs. gas detection tubes
         - Much less expensive than a portable GC
         - No annual factory calibration is required


  • External filters

  • Calibration gases

  • Spare parts

  • Contact us for more options and accessories
